Concrete Pumping Elbow mainly include single wall elbows, double layer(twin walls) elbows,wear-resisting elbows, advanced technology, work life long.

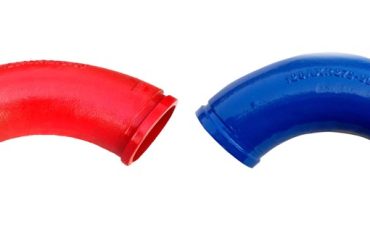

ST52 Concrete Pumping Elbow
Material: 45Mn2 / 55Mn
Wall Thickness: 4.5/ 5.0/ 7.0mm
Length: 1m, 2m, 3m, or according to client’s requirements
Degree:15D, 30D, 45D, 60D, 90D
Extension: 170mm, 211mm, 411mm
Color:White, Red, Yellow, Green, Blue can be customized
Complete with SK 148mm twin wall flange, HD, PM ZX 175mm, Schwing MF 166mm, Sany 157mm, Zoomlion ZX etc.
Welding technique: automatic welding
Surface Treatment: powder painted and baked
Working Pressure: SK type: 85-120 bar ZX type: over 130 bar
Hardness: 58-62 HRC ( 55Mn: up to 65 HRC)
Life Time: 30,000-35,000 CBM in China, 40,000-45,000 CBM in Korea. It is subject to the influence of various factors
ST52 Concrete Pumping Elbow,Concrete pump elbow
Advantages of Concrete Pumping Elbow:
1.Concrete pump elbow for boom pump, trailer pump, stationary pump, truck mounted pump
2. Twin wall elbow ’s service life and working pressure are better than the casting. Besides, The Twin wall elbow’s structure ensures high abrasion resistance and toughness.
3. Chromium alloy iron casting enables the liner highly wear proof and reduce pressure
4. Seamless welding enables the the outer layer hard to explode
5. Light weight improves vehicle efficiency, highly reduces labor and cost and the time for replacement
6. Designed structure, material and process realize its 3-5 times service life of common products
7. to extend the service life of other pipe fitting
8. Easy to use and handle
