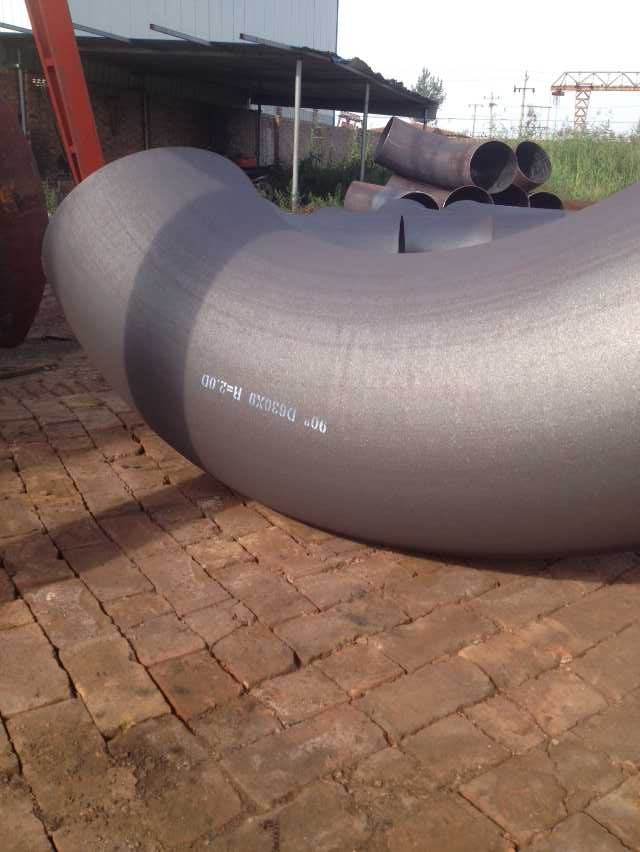

Carbon Steel 2.5D Seamless Pipe Elbow: Specifications, Applications, and Benefits



Introduction

In industrial piping systems, elbows are critical components used to change the direction of flow, typically at angles of 45° or 90°. Among the various types of elbows available, the 2.5D seamless pipe elbow is widely used in applications requiring smooth flow transitions, high strength, and durability. These elbows are made from carbon steel (CS), alloy steel (AS), or stainless steel (SS), and are available in a range of sizes and schedules to meet the specific needs of different industries.

This article provides a comprehensive overview of carbon steel 2.5D seamless pipe elbows, including their specifications, manufacturing process, applications, and benefits. We will also explore the differences between seamless and welded elbows, and provide detailed information on the various schedules (SCH10-SCH80S) and sizes (1/2-24 Inch, DN15-DN600 for seamless elbows and 4-72 Inch, DN150-DN1800 for welded elbows). Additionally, tables will be included to summarize key technical information and specifications.

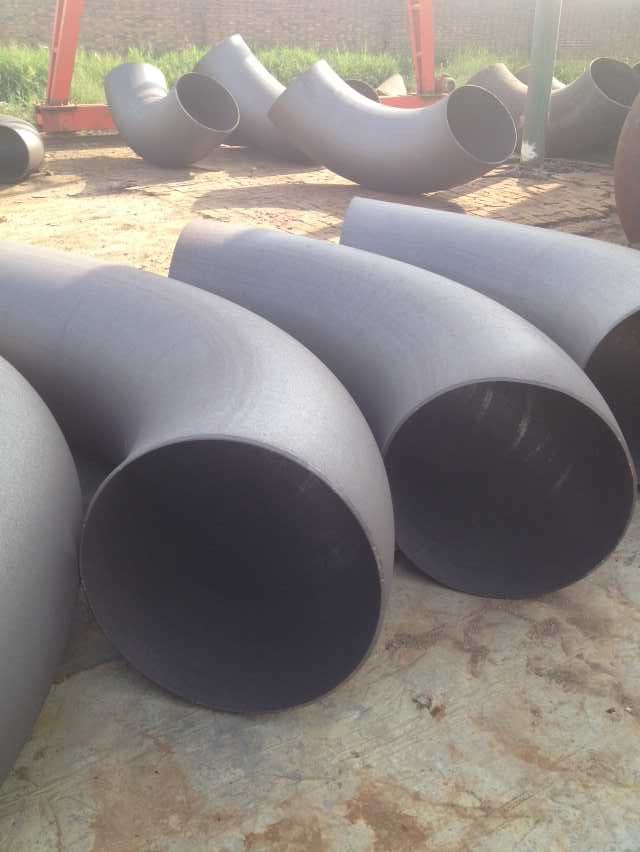

What is a 2.5D Seamless Pipe Elbow?

A 2.5D seamless pipe elbow is a type of pipe fitting used to change the direction of fluid flow in a piping system. The “2.5D” refers to the radius of the elbow, which is 2.5 times the nominal diameter (D) of the pipe. This larger radius provides a smoother flow transition compared to standard elbows, reducing turbulence and pressure loss.

Key Features of 2.5D Seamless Pipe Elbows:

• Seamless Construction: Seamless elbows are manufactured without any welded joints, providing superior strength and resistance to pressure and corrosion.
• 2.5D Radius: The 2.5D radius ensures a smoother flow transition, reducing pressure drops and minimizing wear and tear on the piping system.
• Material Options: Available in carbon steel (CS), alloy steel (AS), and stainless steel (SS), allowing for use in a wide range of applications and environments.
• Size Range: Seamless elbows are available in sizes ranging from 1/2 inch to 24 inches (DN15-DN600), while welded elbows are available in sizes from 4 inches to 72 inches (DN150-DN1800).
• Pressure Ratings: Available in various schedules, including SCH10, SCH20, SCH40, SCH80, SCH80S, to accommodate different pressure and temperature requirements.

Table 1: Key Characteristics of 2.5D Seamless Pipe Elbows

Characteristic	Description
Elbow Type	Seamless pipe elbow with a 2.5D radius
Material	Carbon steel (CS), alloy steel (AS), stainless steel (SS)
Size Range (Seamless)	1/2 inch to 24 inches (DN15-DN600)
Size Range (Welded)	4 inches to 72 inches (DN150-DN1800)
Pressure Ratings	SCH10, SCH20, SCH40, SCH80, SCH80S
Applications	Oil & gas, chemical processing, power generation, water treatment, etc.

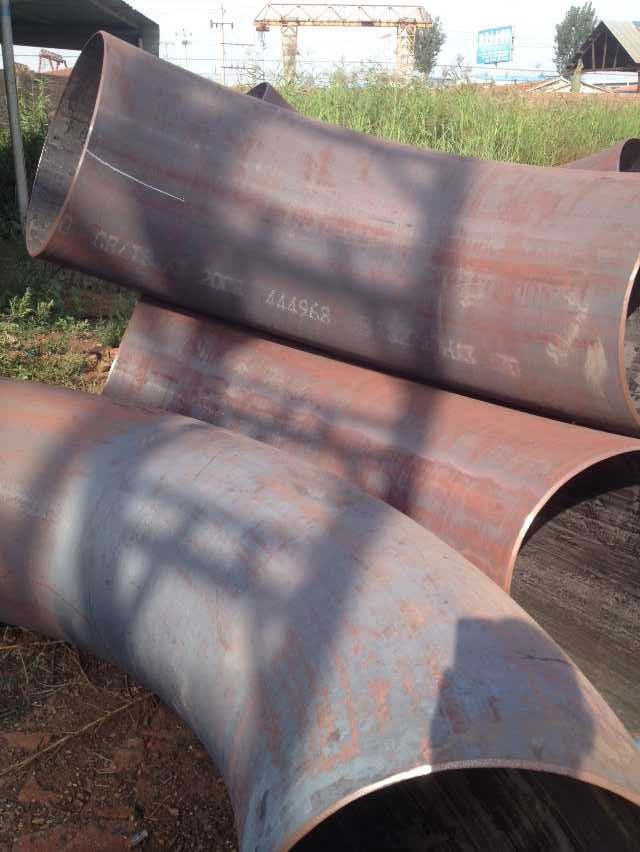

Materials Used in 2.5D Seamless Pipe Elbows

The material selection for 2.5D seamless pipe elbows depends on the specific requirements of the application, including factors such as pressure, temperature, and the type of fluid or gas being transported. The most common materials used for these elbows include carbon steel (CS), alloy steel (AS), and stainless steel (SS).

1. Carbon Steel (CS)

Carbon steel is one of the most widely used materials for seamless pipe elbows due to its high strength, durability, and cost-effectiveness. It is suitable for applications where corrosion is not a major concern, such as in oil and gas pipelines, water distribution systems, and general industrial piping.

• Advantages: High strength, cost-effective, easy to fabricate.
• Disadvantages: Susceptible to corrosion in certain environments, such as those containing moisture or corrosive chemicals.

2. Alloy Steel (AS)

Alloy steel contains additional alloying elements, such as chromium, molybdenum, and nickel, which enhance its strength, hardness, and resistance to high temperatures and corrosion. Alloy steel elbows are commonly used in high-temperature and high-pressure applications, such as power generation, petrochemical processing, and refineries.

• Advantages: High strength, excellent resistance to heat and corrosion.
• Disadvantages: More expensive than carbon steel, requires specialized welding techniques.

3. Stainless Steel (SS)

Stainless steel is known for its excellent corrosion resistance, making it ideal for use in corrosive environments, such as chemical processing plants, food and beverage production, and pharmaceutical manufacturing. Stainless steel elbows are available in various grades, including 304, 316, and 321, each offering different levels of corrosion resistance and mechanical properties.

• Advantages: Excellent corrosion resistance, high durability, suitable for hygienic applications.
• Disadvantages: Higher cost compared to carbon steel and alloy steel.

Table 2: Comparison of Materials for 2.5D Seamless Pipe Elbows

Material	Advantages	Disadvantages	Applications
Carbon Steel (CS)	High strength, cost-effective, easy to fabricate	Susceptible to corrosion in certain environments	Oil & gas, water distribution, general industrial use
Alloy Steel (AS)	High strength, excellent resistance to heat and corrosion	More expensive, requires specialized welding	Power generation, petrochemical, refineries
Stainless Steel (SS)	Excellent corrosion resistance, high durability, suitable for hygienic applications	Higher cost compared to carbon and alloy steel	Chemical processing, food & beverage, pharmaceuticals

Manufacturing Process of 2.5D Seamless Pipe Elbows

The manufacturing process of seamless pipe elbows involves several steps to ensure that the final product meets the required specifications for strength, durability, and dimensional accuracy. The process typically includes the following stages:

1. Raw Material Selection

The first step in manufacturing a seamless pipe elbow is selecting the appropriate raw material, typically a seamless pipe or billet made from carbon steel, alloy steel, or stainless steel. The material is chosen based on the specific requirements of the application, such as pressure, temperature, and corrosion resistance.

2. Cutting

The selected raw material is cut to the required length, depending on the size of the elbow being manufactured. The length of the cut material is determined by the desired radius and angle of the elbow (e.g., 45° or 90°).

3. Heating

The cut pipe or billet is heated in a furnace to a high temperature, typically between 900°C and 1200°C (1650°F to 2200°F), to make the material more malleable and easier to form.

4. Forming

Once the material reaches the desired temperature, it is placed in a forming die, where it is shaped into the required elbow configuration. The forming process may involve several techniques, including hot pushing, mandrel bending, or hydraulic forming, depending on the size and specifications of the elbow.

• Hot Pushing: In this process, the heated pipe is pushed through a die to form the desired elbow shape. The pipe is simultaneously expanded and bent to achieve the required radius and angle.
• Mandrel Bending: A mandrel is inserted into the pipe to prevent it from collapsing during the bending process. The pipe is then bent around a die to form the elbow.
• Hydraulic Forming: Hydraulic pressure is used to expand and bend the pipe into the desired elbow shape.

5. Heat Treatment

After forming, the elbow undergoes heat treatment to relieve internal stresses and improve its mechanical properties. Common heat treatment processes include normalizing, annealing, and quenching and tempering, depending on the material and application requirements.

6. Machining and Finishing

Once the elbow has been heat-treated, it is machined to achieve the required dimensions and surface finish. This may include processes such as trimming, beveling, and polishing. The ends of the elbow are typically beveled to prepare them for welding during installation.

7. Inspection and Testing

The final step in the manufacturing process is inspection and testing to ensure that the elbow meets the required specifications for strength, dimensional accuracy, and surface finish. Common tests include ultrasonic testing, radiographic testing, and hydrostatic testing to check for defects such as cracks, voids, or leaks.

Table 3: Manufacturing Process of 2.5D Seamless Pipe Elbows

Step	Description
Raw Material Selection	Selection of seamless pipe or billet made from carbon steel, alloy steel, or stainless steel
Cutting	Cutting the raw material to the required length
Heating	Heating the material to a high temperature to make it malleable
Forming	Shaping the material into the required elbow configuration using hot pushing, mandrel bending, or hydraulic forming
Heat Treatment	Relieving internal stresses and improving mechanical properties through normalizing, annealing, or quenching and tempering
Machining and Finishing	Machining the elbow to achieve the required dimensions and surface finish
Inspection and Testing	Inspecting and testing the elbow for strength, dimensional accuracy, and surface finish

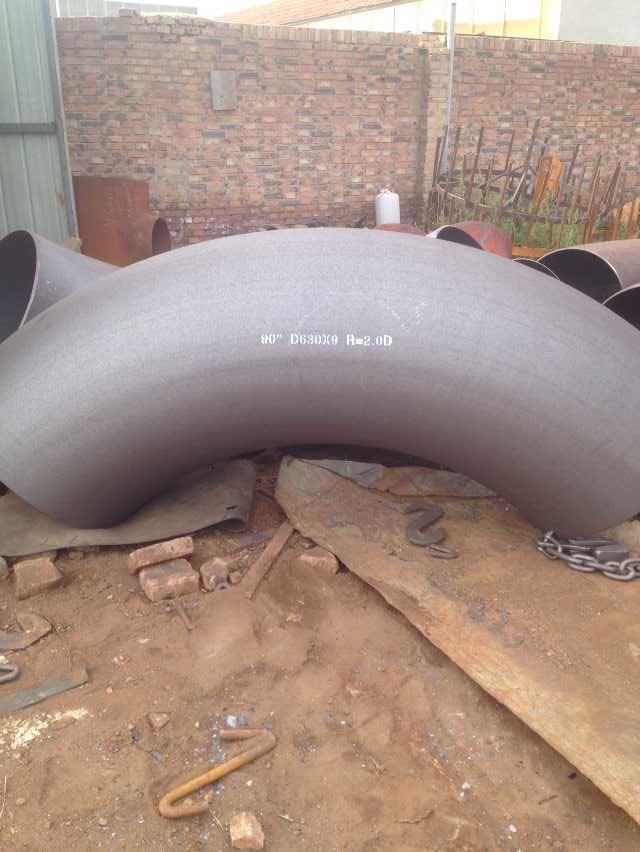

Pressure Ratings and Schedules (SCH10-SCH80S)

The pressure rating of a 2.5D seamless pipe elbow is determined by its schedule (SCH), which refers to the wall thickness of the pipe. The schedule affects the elbow’s ability to withstand internal pressure and is an important factor in selecting the appropriate elbow for a given application.

Common Schedules for 2.5D Seamless Pipe Elbows:

• SCH10: Thin-walled, suitable for low-pressure applications.
• SCH20: Slightly thicker than SCH10, used in moderate-pressure applications.
• SCH40: Standard wall thickness, commonly used in a wide range of applications, including water, gas, and steam pipelines.
• SCH80: Thick-walled, suitable for high-pressure applications.
• SCH80S: Similar to SCH80 but with a slightly different wall thickness, often used in stainless steel piping systems.

Table 4: Pressure Ratings and Schedules for 2.5D Seamless Pipe Elbows

Schedule	Wall Thickness (inches)	Pressure Rating (psi)	Applications
SCH10	0.109 – 0.148	150 – 300	Low-pressure applications, such as water distribution and HVAC systems
SCH20	0.147 – 0.216	300 – 600	Moderate-pressure applications, such as gas pipelines and industrial water systems
SCH40	0.154 – 0.337	600 – 1500	Standard applications, including steam, gas, and water pipelines
SCH80	0.218 – 0.500	1500 – 3000	High-pressure applications, such as oil and gas pipelines and chemical processing
SCH80S	0.218 – 0.500	1500 – 3000	High-pressure stainless steel piping systems

Seamless vs. Welded Elbows

When selecting a pipe elbow, it is important to understand the differences between seamless and welded elbows, as each type has its own advantages and disadvantages.

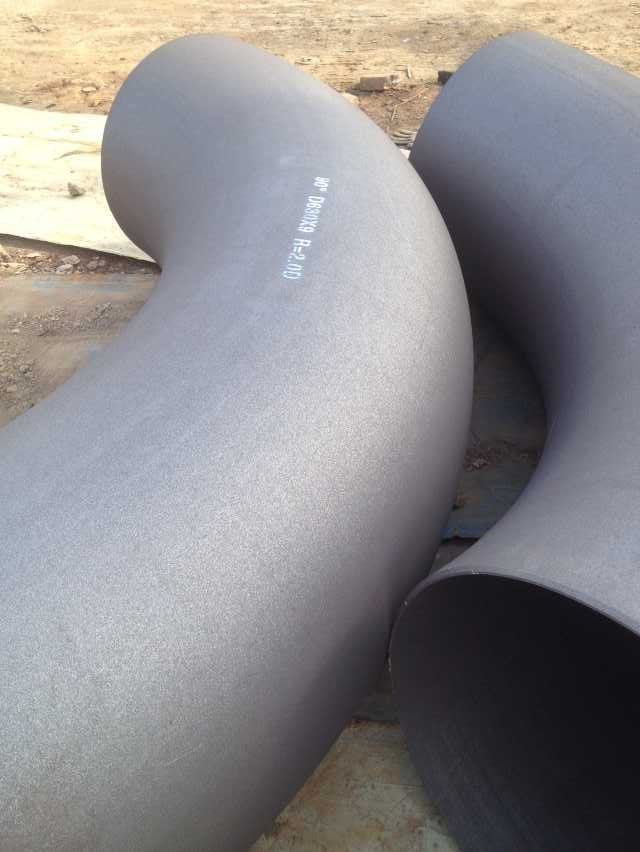

1. Seamless Elbows

Seamless elbows are manufactured from a single piece of material, without any welded joints. This provides superior strength and resistance to pressure, making seamless elbows ideal for high-pressure and high-temperature applications.

• Advantages: No welded joints, higher strength, better resistance to pressure and corrosion.
• Disadvantages: More expensive than welded elbows, limited size range (typically up to 24 inches).

2. Welded Elbows

Welded elbows are made by joining two pieces of material together using welding techniques. While welded elbows are generally less expensive than seamless elbows, they may have lower strength and resistance to pressure due to the presence of welded joints.

• Advantages: Lower cost, available in larger sizes (up to 72 inches).
• Disadvantages: Welded joints may be weaker than seamless construction, potential for corrosion at the weld seam.

Table 5: Comparison of Seamless and Welded Elbows

Type	Advantages	Disadvantages	Applications
Seamless Elbows	No welded joints, higher strength, better resistance to pressure and corrosion	More expensive, limited size range (up to 24 inches)	High-pressure, high-temperature applications
Welded Elbows	Lower cost, available in larger sizes (up to 72 inches)	Welded joints may be weaker, potential for corrosion at the weld seam	Low to moderate pressure applications, large-diameter pipelines

Applications of 2.5D Seamless Pipe Elbows
